The Setup

Before protecting the server, I made it harder to reach.

When you visit this website, your browser does not connect directly to the computer hosting it.

The Nginx web server runs on an Amazon EC2 instance inside a private subnet. It has no public IPv4 address.

All public traffic has to enter through an Application Load Balancer first.

Internet Visitor ↓ Application Load Balancer ↓ AWS WAF ↓ Private EC2 / Nginx

Think of it like an office building. Visitors can enter through the front lobby, but they cannot walk directly into the server room.

Attack Prevention

First, I attacked my own website.

Turning on a security product is easy. Proving that it actually works is more interesting.

I sent the live application a request designed to resemble a cross-site scripting attack, commonly known as XSS.

Instead of reaching Nginx, the request was stopped by AWS WAF.

Test Result

HTTP/2 403 Forbidden
Rule: CrossSiteScripting_QUERYARGUMENTS

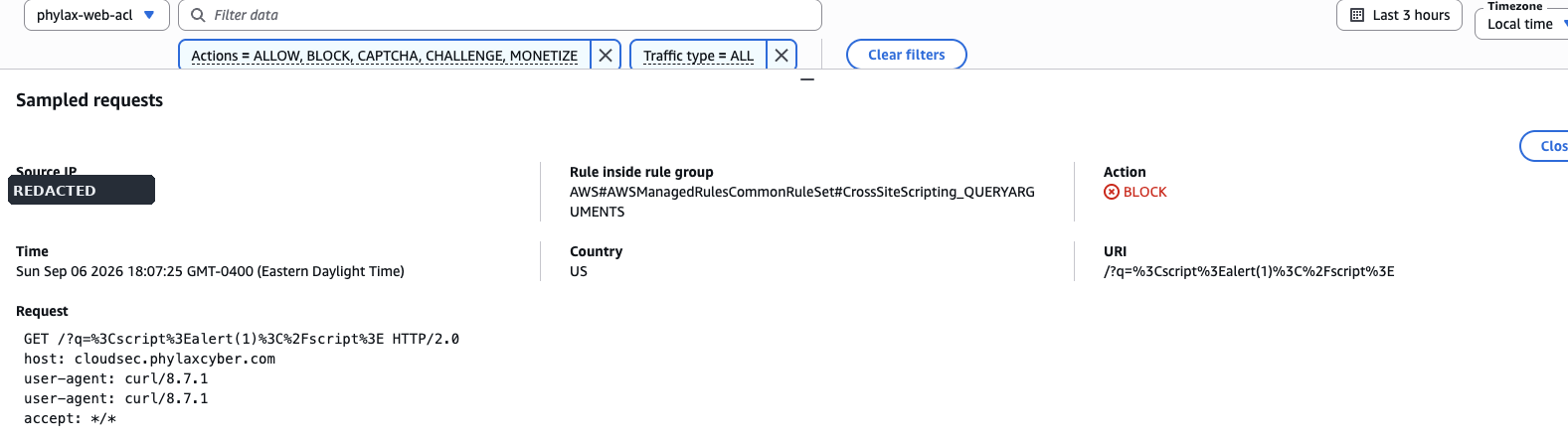

Evidence #1 BLOCKED

AWS WAF XSS screenshot will appear here

AWS WAF stopped the malicious-looking request before it reached the private application server.

In plain English The security guard at the front entrance rejected the visitor before the visitor reached the application.

Configuration Drift

But attackers are not the only source of risk.

Sometimes the problem is a human mistake.

Cloud environments change constantly.

Administrators create servers, change network rules, update permissions, and modify security groups.

One small configuration change can accidentally expose a resource.

So I deliberately created one of the classic dangerous cloud configurations.

Misconfiguration Introduced

SSH
TCP Port 22
Source: 0.0.0.0/0

What does 0.0.0.0/0 mean? For someone learning cloud security, think of it as:

"Allow any computer on the internet."

AWS Config was continuously evaluating the environment.

It detected the exposed SSH rule and marked the resource:

Compliance Status

NON_COMPLIANT

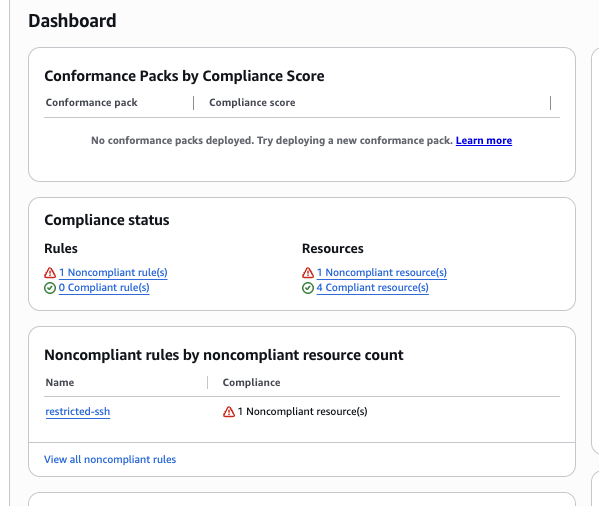

Evidence #2 NON-COMPLIANT

AWS Config NON_COMPLIANT screenshot

AWS Config independently detected the dangerous SSH configuration.

Automated Remediation

Detection was only half the problem.

At this point, AWS knew something was wrong.

But the dangerous rule was still there.

So I built an event-driven response.

Step 1

Security group changed

Public SSH access was added.

Step 2

CloudTrail recorded the API call

AWS captured who made the change, where it came from, and what resource was modified.

Step 3

EventBridge detected the event

The AuthorizeSecurityGroupIngress API event matched the EventBridge rule.

Step 4

Lambda investigated

The function checked whether the resource was approved for remediation, whether TCP/22 was exposed, and whether the source was 0.0.0.0/0.

Step 5

The unsafe rule was removed

Lambda revoked the public SSH ingress rule.

Step 6

The operator was notified

SNS emailed the incident details and confirmed the status as REMEDIATED.

I refreshed the security group. The SSH rule was gone.

I did not manually delete it.

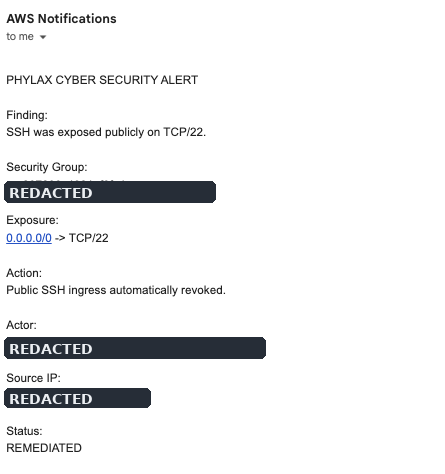

Evidence #3 REMEDIATED

SNS remediation email screenshot

The notification records the affected resource, actor, source IP, exposure, action taken, and remediation status.

Guardrails

I didn't let Lambda touch everything.

Automatic remediation is powerful.

That also makes it dangerous if the automation contains bad logic.

A resource must explicitly opt into remediation using this tag:

AutoRemediatePublicSSH = true

Automation needs boundaries. Think of the tag as an approved list saying:

"You are allowed to automatically protect this resource."

Verification

Fixing the problem wasn't enough. I wanted proof.

After Lambda removed the public SSH rule, AWS Config evaluated the environment again.

Before Remediation

1 NON_COMPLIANT resource

After Remediation

0 NON_COMPLIANT resources

Misconfiguration ↓ Detection ↓ Decision ↓ Automatic Remediation ↓ Alert ↓ Compliance Restored

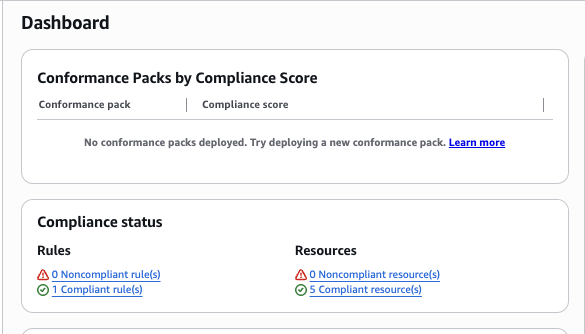

Evidence #4 COMPLIANT

AWS Config COMPLIANT screenshot

AWS Config independently confirmed that the dangerous configuration no longer existed.

Another Lesson

Then I removed a NAT Gateway and accidentally broke administration.

During the build, the private EC2 instance used a NAT Gateway for outbound access.

Once the application was configured, keeping the NAT Gateway running for a small portfolio project no longer made sense.

So I removed it.

The website stayed online.

AWS Systems Manager did not.

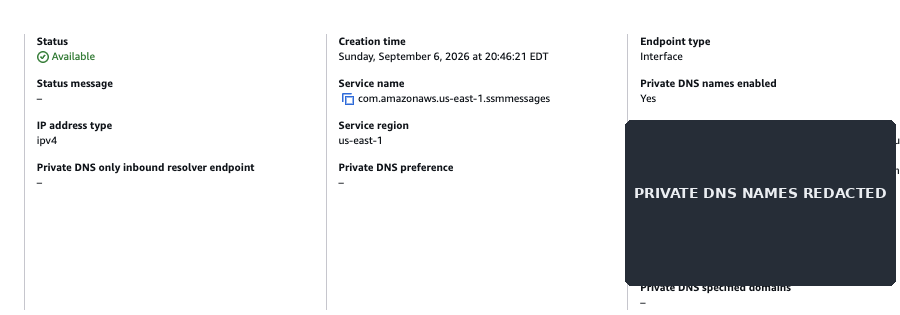

Instead of restoring broad internet access, I created private VPC interface endpoints specifically for Systems Manager.

Private EC2 ↓ HTTPS 443 ↓ Private SSM Endpoint ↓ AWS Systems Manager

The better fix wasn't putting NAT back. It was understanding the hidden dependency and replacing it with a narrower, private connection.

Cloud Security in Plain English

What do all these AWS services actually do?

AWS Service	Think of it as...
Application Load Balancer	The front entrance to the application
AWS WAF	A security guard checking visitors
Private EC2	The protected server room
CloudTrail	A security camera recording AWS actions
AWS Config	An auditor checking whether resources follow the rules
EventBridge	An alarm system reacting to important events
Lambda	An automated security responder
SNS	The notification system
GuardDuty	A cloud threat-detection service
Security Hub	A central security dashboard
Systems Manager	A secure administration channel

What I Learned

Cloud security isn't about turning on as many security services as possible.

The interesting part is making them work together.

A change becomes a signal ↓ The signal becomes a decision ↓ The decision becomes an action ↓ The action becomes an alert ↓ Another control verifies the environment is secure again

That is what I wanted Phylax Cyber to demonstrate.
